Huazhong 8 CNC system operation guide (1)

Huazhong 8 CNC system operation guide of panel functions

High precision and high efficiency are the core competencies of CNC, and intelligence is the development direction of CNC technology. In order to help users further improve the performance of machine tool products, Huazhong CNC targets the product direction of ”useful, durable and easy to use”, and launched a new Huazhong 8 CNC System V2.4 product to help users realize “more precise and faster “CNC machining, more intelligent”.

Take Huazhong 8 CNC system for milling and Huazhong 8 CNC system for turning as an example and helps you quickly master Huazhong 8 CNC system from the aspects of introduction to control panel functions, programming, tool sets, machining operation, basic application, and maintenance, etc. Systematic machining method.

An overall introduction of panel functions

Huazhong 8 CNC system operation guide of panel functions

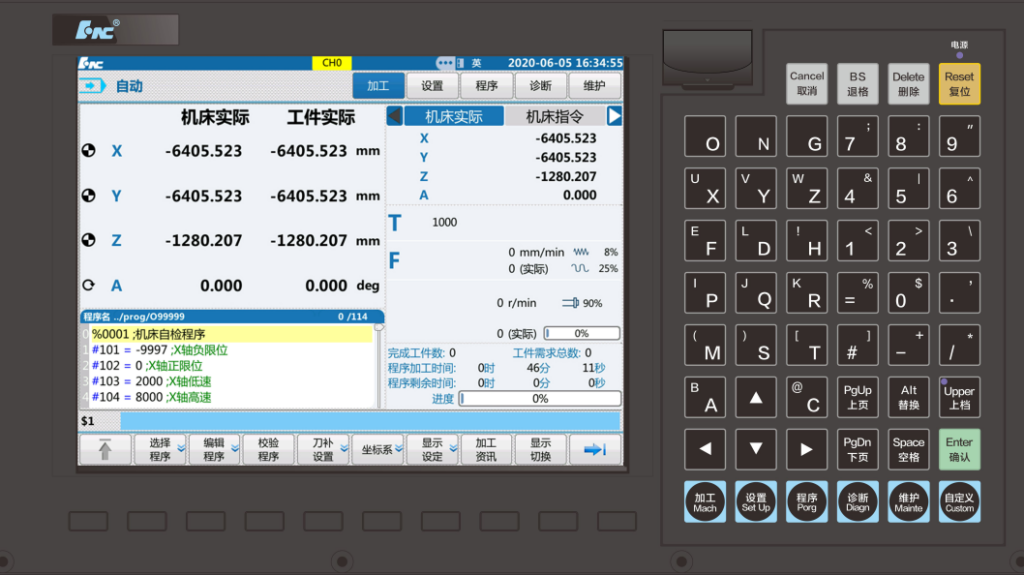

The CNC panel of the Huazhong 8 milling CNC device is equipped with 5 function keys “processing, setting, program, diagnosis, and maintenance”. Each function key corresponds to a group of function sets. Each function set can select the corresponding function and interface through the part soft key. The function description and main tasks of each function set are as follows.

Processing

Huazhong 8 CNC system operation guide of panel functions-Processing

Functional description: Functions required for automatic machining operations

Functional content:

① Program editing: edit new program, edit currently loaded program, edit selection;

② Program processing: processing program selection, program verification, program processing;

③ Tool setting operation: coordinate system, tool compensation setting;

④ Interface display: track setting, display switching;

⑤ Others: user macro, processing information, manual MST.

Set up

Huazhong 8 CNC system operation guide of panel functions-Set up

Function description: operation functions related to tool setting

Function content: tool compensation setting, tool setting, tool life management, tool setting operation (coordinate system, workpiece measurement, automatic tool setting)

Program

Huazhong 8 CNC system operation guide of panel functions-Program

Function description: user program management function

Function content: Edit new program, select, copy, paste, delete the program from the system disk, U disk, network disk, program rename, sort, set the mark

Diagnosis

Huazhong 8 CNC system operation guide of panel functions-Diagnosis

Function description: fault diagnosis, performance debugging, intelligent function

Functional content:

  ①  Fault diagnosis function: alarm information, alarm history, ladder diagram, PLC status, macro variable, log, and other functions;

   ②   Performance debugging function: servo adjustment

   ③   Intelligent functions: fault recording, screw load, self-check, and other maintenance

Maintain

Huazhong 8 CNC system operation guide of panel functions-Maintain

Function description: hardware setting, parameter setting, system upgrade, basic information, data management, and other maintenance-related functions

Functional content:

   ①   System’s hardware device configuration and configuration sequence setting function: device configuration

   ②   General parameter setting function: parameter setting

   ③   Setting function of user-selected parameters: parameter configuration

   ④   System upgrade and debugging functions: batch debugging, data management, system upgrade, authority management, user setting

  ⑤ Registration, basic information, and other functions: registration, machine information, system information, process package, time setting

Please stay tuned for the Milling CNC Quick Start Operation Guide Series

Issue 1 Overall Introduction to Panel Functions

Issue 2 Program and verification

Issue 3 Machining coordinate system setting

Issue 4 Manual MST (manual numerical command)

Issue 5 MDI Function (Manual Input Mode)
